Concrete Table Inheritance (Наследование с таблицами конечных классов)

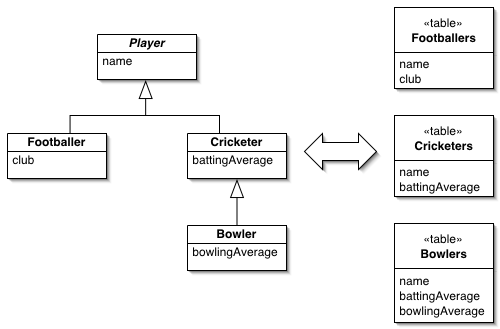

Паттерн проектирования Concrete Table Inheritance
Описание Concrete Table Inheritance
Представляет иерархию наследования классов в виде структуры БД, когда одна таблица отвечает целиком одному классу.
Проблема объектно-реляционного взаимодействия заключается в отсутствии поддержки наследования в РБД. Если рассматривать таблицы с объектной точки зрения, есть смысл записывать каждый объект в отдельную запись в БД. Такой подход реализует паттерн Concrete Table Inheritance, в котором каждому конкретному классу из иерархии наследования соответствует своя таблица.
Примеры реализации
SQL Схема
-- Таблица для клиентов
CREATE TABLE customers (
id INT PRIMARY KEY AUTO_INCREMENT,
name VARCHAR(100) NOT NULL,
email VARCHAR(100) NOT NULL,
phone VARCHAR(20),
address TEXT,
loyalty_points INT DEFAULT 0,
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- Таблица для сотрудников
CREATE TABLE employees (
id INT PRIMARY KEY AUTO_INCREMENT,
name VARCHAR(100) NOT NULL,
email VARCHAR(100) NOT NULL,
employee_id VARCHAR(20) UNIQUE NOT NULL,
department VARCHAR(50),
salary DECIMAL(10,2),
hire_date DATE,
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- Таблица для менеджеров
CREATE TABLE managers (
id INT PRIMARY KEY AUTO_INCREMENT,
name VARCHAR(100) NOT NULL,
email VARCHAR(100) NOT NULL,
employee_id VARCHAR(20) UNIQUE NOT NULL,
department VARCHAR(50),
salary DECIMAL(10,2),
hire_date DATE,
team_size INT DEFAULT 0,
budget DECIMAL(12,2),
created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);
-- Вставка данных
INSERT INTO customers (name, email, phone, address, loyalty_points)
VALUES ('John Doe', 'john@example.com', '+1234567890', '123 Main St', 100);
INSERT INTO employees (name, email, employee_id, department, salary, hire_date)
VALUES ('Jane Smith', 'jane@company.com', 'EMP001', 'IT', 75000.00, '2023-01-15');
INSERT INTO managers (name, email, employee_id, department, salary, hire_date, team_size, budget)
VALUES ('Bob Johnson', 'bob@company.com', 'MGR001', 'IT', 95000.00, '2022-06-01', 5, 500000.00);
-- Запросы
-- Получить всех клиентов
SELECT * FROM customers ORDER BY created_at DESC;
-- Получить всех сотрудников (включая менеджеров)
SELECT * FROM employees
UNION ALL
SELECT id, name, email, employee_id, department, salary, hire_date, created_at, NULL, NULL FROM managers;PHP Реализация
id = $id;
$this->name = $name;
$this->email = $email;
$this->createdAt = new DateTime();
}
public function getId() { return $this->id; }
public function getName() { return $this->name; }
public function getEmail() { return $this->email; }
public function getCreatedAt() { return $this->createdAt; }
public function setName($name) { $this->name = $name; }
public function setEmail($email) { $this->email = $email; }
abstract public function getType();
abstract public function save(PDO $pdo);
abstract public function load(PDO $pdo, $id);
}
// Класс клиента
class Customer extends User {
private $phone;
private $address;
private $loyaltyPoints;
public function __construct($id = null, $name = '', $email = '', $phone = '', $address = '', $loyaltyPoints = 0) {
parent::__construct($id, $name, $email);
$this->phone = $phone;
$this->address = $address;
$this->loyaltyPoints = $loyaltyPoints;
}
public function getType() { return 'Customer'; }
public function getPhone() { return $this->phone; }
public function getAddress() { return $this->address; }
public function getLoyaltyPoints() { return $this->loyaltyPoints; }
public function setPhone($phone) { $this->phone = $phone; }
public function setAddress($address) { $this->address = $address; }
public function setLoyaltyPoints($points) { $this->loyaltyPoints = $points; }
public function save(PDO $pdo) {
if ($this->id) {
$stmt = $pdo->prepare("UPDATE customers SET name = ?, email = ?, phone = ?, address = ?, loyalty_points = ? WHERE id = ?");
$stmt->execute([$this->name, $this->email, $this->phone, $this->address, $this->loyaltyPoints, $this->id]);
} else {
$stmt = $pdo->prepare("INSERT INTO customers (name, email, phone, address, loyalty_points, created_at) VALUES (?, ?, ?, ?, ?, ?)");
$stmt->execute([$this->name, $this->email, $this->phone, $this->address, $this->loyaltyPoints, $this->createdAt->format('Y-m-d H:i:s')]);
$this->id = $pdo->lastInsertId();
}
return true;
}
public function load(PDO $pdo, $id) {
$stmt = $pdo->prepare("SELECT * FROM customers WHERE id = ?");
$stmt->execute([$id]);
$data = $stmt->fetch(PDO::FETCH_ASSOC);
if ($data) {
$this->id = $data['id'];
$this->name = $data['name'];
$this->email = $data['email'];
$this->phone = $data['phone'];
$this->address = $data['address'];
$this->loyaltyPoints = $data['loyalty_points'];
$this->createdAt = new DateTime($data['created_at']);
return true;
}
return false;
}
}
// Класс менеджера
class Manager extends User {
private $employeeId;
private $department;
private $salary;
private $hireDate;
private $teamSize;
private $budget;
public function __construct($id = null, $name = '', $email = '', $employeeId = '', $department = '', $salary = 0, $hireDate = null, $teamSize = 0, $budget = 0) {
parent::__construct($id, $name, $email);
$this->employeeId = $employeeId;
$this->department = $department;
$this->salary = $salary;
$this->hireDate = $hireDate ?: new DateTime();
$this->teamSize = $teamSize;
$this->budget = $budget;
}
public function getType() { return 'Manager'; }
public function getEmployeeId() { return $this->employeeId; }
public function getDepartment() { return $this->department; }
public function getSalary() { return $this->salary; }
public function getHireDate() { return $this->hireDate; }
public function getTeamSize() { return $this->teamSize; }
public function getBudget() { return $this->budget; }
public function setEmployeeId($employeeId) { $this->employeeId = $employeeId; }
public function setDepartment($department) { $this->department = $department; }
public function setSalary($salary) { $this->salary = $salary; }
public function setHireDate($hireDate) { $this->hireDate = $hireDate; }
public function setTeamSize($teamSize) { $this->teamSize = $teamSize; }
public function setBudget($budget) { $this->budget = $budget; }
public function save(PDO $pdo) {
if ($this->id) {
$stmt = $pdo->prepare("UPDATE managers SET name = ?, email = ?, employee_id = ?, department = ?, salary = ?, hire_date = ?, team_size = ?, budget = ? WHERE id = ?");
$stmt->execute([$this->name, $this->email, $this->employeeId, $this->department, $this->salary, $this->hireDate->format('Y-m-d'), $this->teamSize, $this->budget, $this->id]);
} else {
$stmt = $pdo->prepare("INSERT INTO managers (name, email, employee_id, department, salary, hire_date, team_size, budget, created_at) VALUES (?, ?, ?, ?, ?, ?, ?, ?, ?)");
$stmt->execute([$this->name, $this->email, $this->employeeId, $this->department, $this->salary, $this->hireDate->format('Y-m-d'), $this->teamSize, $this->budget, $this->createdAt->format('Y-m-d H:i:s')]);
$this->id = $pdo->lastInsertId();
}
return true;
}
public function load(PDO $pdo, $id) {
$stmt = $pdo->prepare("SELECT * FROM managers WHERE id = ?");
$stmt->execute([$id]);
$data = $stmt->fetch(PDO::FETCH_ASSOC);
if ($data) {
$this->id = $data['id'];
$this->name = $data['name'];
$this->email = $data['email'];
$this->employeeId = $data['employee_id'];
$this->department = $data['department'];
$this->salary = $data['salary'];
$this->hireDate = new DateTime($data['hire_date']);
$this->teamSize = $data['team_size'];
$this->budget = $data['budget'];
$this->createdAt = new DateTime($data['created_at']);
return true;
}
return false;
}
}
// Использование
try {
$pdo = new PDO('mysql:host=localhost;dbname=test', 'username', 'password');
// Создание и сохранение клиента
$customer = new Customer(null, 'John Doe', 'john@example.com', '+1234567890', '123 Main St', 100);
$customer->save($pdo);
// Создание и сохранение менеджера
$manager = new Manager(null, 'Jane Smith', 'jane@company.com', 'MGR001', 'IT', 95000, new DateTime('2022-06-01'), 5, 500000);
$manager->save($pdo);
// Загрузка клиента
$loadedCustomer = new Customer();
if ($loadedCustomer->load($pdo, 1)) {
echo "Loaded customer: " . $loadedCustomer->getName() . "\n";
}
} catch (Exception $e) {
echo "Error: " . $e->getMessage();
}
?>Использована иллюстрация с сайта Мартина Фаулера.
